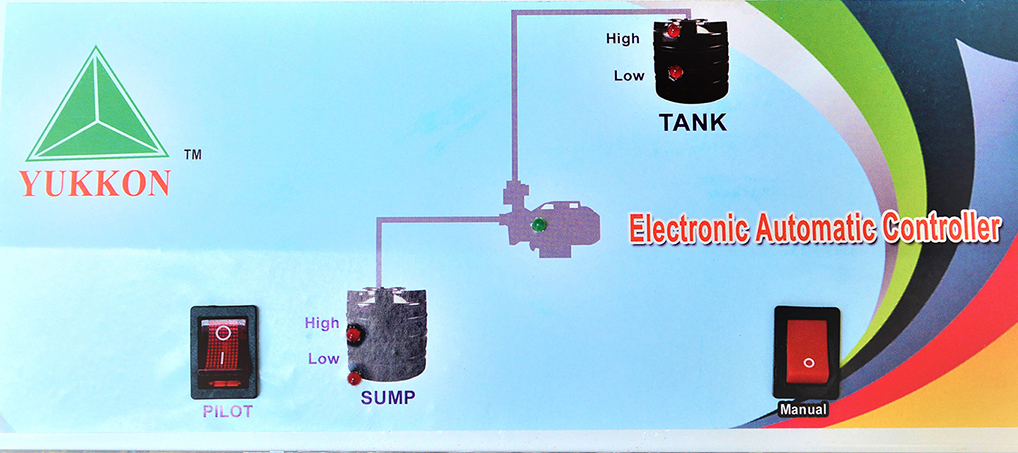

Water Level Controler

YUKKON Automatic Water level controller is an Electronic product which controls the pump automatically. Water level controller will have series connection with the pump starter which ensures constant water storage on tanks. Automatic water level controller is used to automatically fill the overhead tank as and when it gets empty and monitor the water level in it.

FEATURES

  • YUKKON also regulates the water level in your sump to ensure that there is no wastage or dry run.
  • Latest release of the ultimate tank level indicator system incorporating a fully upgraded hardware design.
  • Ultra-long range wired communication technology.
  • Controlling of Water tanks from any Size.
  • Automatic Start, Stopping of Your Motor.
  • Fully programmable automatic pump control.
  • Automatic system calibration of “full tank” (100%) level.
  • High quality construction including Anti-corrosion Carbon sensor and ultra-high UV resistant plastic.
  • Pump protection from Dry run and Overflow condition.
  • The System can be used For 0.5HP – Any HP Motors.
  • Specially Designed For Submersible Motor.
  • High performance, long range wire connectivity.
  • One-Year full replacement warranty.
SINGLE PHASE
MINIMUM VOLTAGE 170 V
MAXIMUM VOLTAGE 250 V
RECOMMENDED VOLTAGE 230 V
THREE PHASE
MINIMUM VOLTAGE 340 V
MAXIMUM VOLTAGE 460 V
MAX CONNECTION 2 (BOTH SUMP & TANK)
SUMP 1 (BOTH SINGLE PHASE & 3 PHASE)
TANK 1 (BOTH SINGLE PHASE & 3 PHASE) MANUAL & AUTO PHASE)
MODE MANUAL & AUTO
PROTECTION TRIPING THE MOTOR (HIGH LEVEL)
DIMENSIONS 240mm x 110mm x 50mm
WEIGHT OF MACHINE 1000 GRAMS
INFORMATION CONTROL OVER FLOW

Benefits

  • Automatic water level controllers can maintain an exact pre-set water level.

  • The power used by this controller is low and negligible.

  • These controllers are compact, easy to installed, and easy to move.

  • The sensor can be free of corrosion and the maintenance cost is very low.

  • is used to automatically fill the overhead tank as and when it gets empty and monitor the water level in it.

  • Has compact and elegant design, is fully automatic With its precise working saves water and current.

  • Avoids the seepage of walls and roofs when the tank Overflows.

Applications

  • It is helpful in many industrial sectors, companies, educational institutions, charitable trust, hospitals, schools, hostels and hotels.

  • Very much applicable in multi-store yed building such as apartments and layouts, Shopping Malls, theatres, Stadium, Wedding halls/Party halls, Temples etc.
